Diagnosing a Common Rail Diesel Engine 2003 Opel Vivaro 1.9 Dci F9Q
Introduction
The 2003 Opel Vivaro 2003, equipped with the 1.9 Dci F9Q engine is one of the first common rail Diesel engines from Renault. This is a simple and reliable engine. The problems we are diagnosing on this particular specimen are: Hard cold start, blue smoke from the tailpipe, engine shake or miss, increased fuel consumption, and decreased power. The engine was serviced, including a valve adjustment less than 1000 km (620 miles) ago.
A scanner was connected and a very high correction value for cylinder #3 injector: +5 mg/cycle was observed. It looks like the injector is failing but before condemning it, some more diagnosis is in order.
One channel of an USB Autoscope is connected to the crankshaft sensor and another channel is used to connect a current transducer to the fuel injector for cylinder #1. The waveforms are recorded for use by the CSS script written by Andrew Shulgin (more information about CSS script can be found in March 2012 issue of Underhood Service; in TechShop’s October 2015; February and June 2016 issues)
The script is run and the following results are obtained (Figure 1):
Figure 1. Acceleration and deceleration graph
During deceleration cylinder #3 shows a lower dip (marked with a red circle in Figure 1). This dip indicates a problem with compression. During partial load conditions the shake or miss is seen (marked with a red rectangle).
Figure 2 shows what the "Compression" tab uncovers.

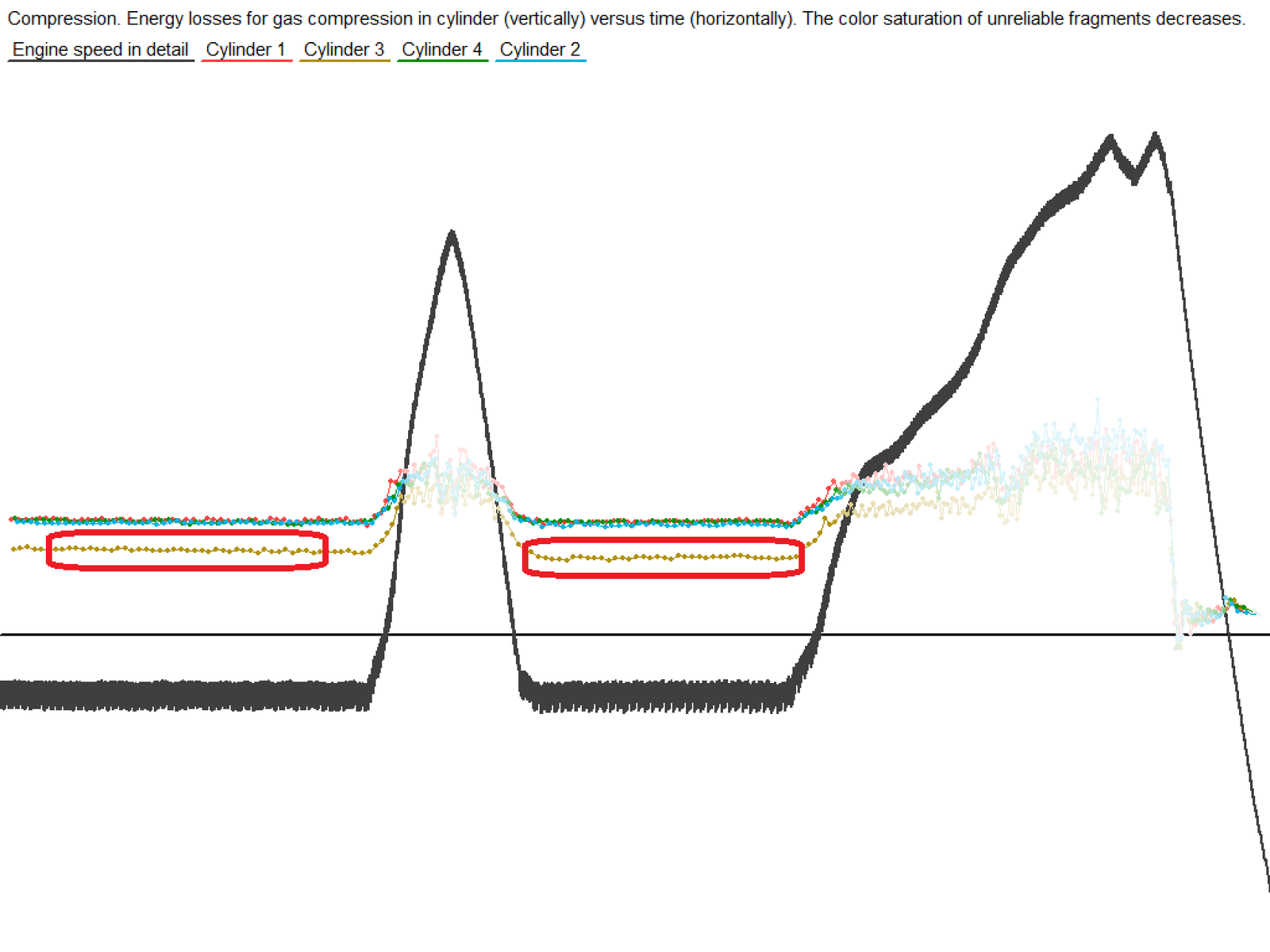

Figure 2. The compression tab
It can be seen that the resistance created on the compression stroke by cylinder #3 is much smaller than from the other cylinders.
Relative compression test
As a verification, the relative compression was checked as shown in Figure 3 by visualizing the starter current as a graph versus cylinder position. To perform the test, the engine must be inhibited from starting. In this case, the connectors from the fuel injectors was disconnected and an injector emulator (a coil from a Bosch common rail injector) was connected to the connector for injector #1. A low amp clamp was attached around one of the leads going to the emulator. This signal was used for synchronization. A high amp clamp, the APPA32 current transducer, was attached to the negative battery cable.
Figure 3. Relative compression
Cylinder #3 shows a distinct reduction of compression. Using relative compression is a much simpler method than attempting to remove the glow plugs, which may not even be accessible and may break during removal attempts.
Crankcase pressure pulsations analysis
At this point we know that the problem is low compression in cylinder #3. All that is left is to determine exactly why this problem exists. Is it the cylinder/piston or the valve train? To determine if the problem is cylinder leakage, a pressure transducer was connected through the use of a suitable adapter to the oil filler neck. As shown in Figure 4, this will obtain a waveform of the crankcase pressure pulsations. To synchronize the waveform to the cylinders, a low amps clamp was attached to the wiring for cylinder #1.
Figure 4. Crankcase pressure waveform
Conclusion
The pulsation amplitude variation is minimal. This means that even if there were cylinder leakage, it would be nearly the same for all of the cylinders.
This leaves only 2 possibilities; A bent piston rod, or leaking/misadjusted valves. (It is extremely unlikely that a bad camshaft would cause this amount of compression loss).
A golden rule is to check the simple things first, so a valve adjustment was performed. The exhaust valve clearance on cylinder number #3 was found to be way too small. After proper adjustment, the engine performed as it should.
Authors:
Oleg Malin
Vasyl Postolovskyi
Olle Gladso
