USB Autoscope Lite kit contents

USB Autoscope Lite Kit

The USB Autoscope Lite kit is perfect for beginners. It is designed for displaying, recording, and analyzing signals from different sensors and automotive electrical systems.

960 $

The USB Autoscope Lite Kit contains a selection of automotive accessories neatly packed in a cardboard box to minimise shipping expense.

The contents of this standard USB Autoscope Lite Kit are:

Auto_Lite_front_1024

USB Autoscope Lite

The USB Autoscope Lite is a beginner’s version of the device from the series of eight channel analyzer engines.
Oscilloscope_probe_300x225

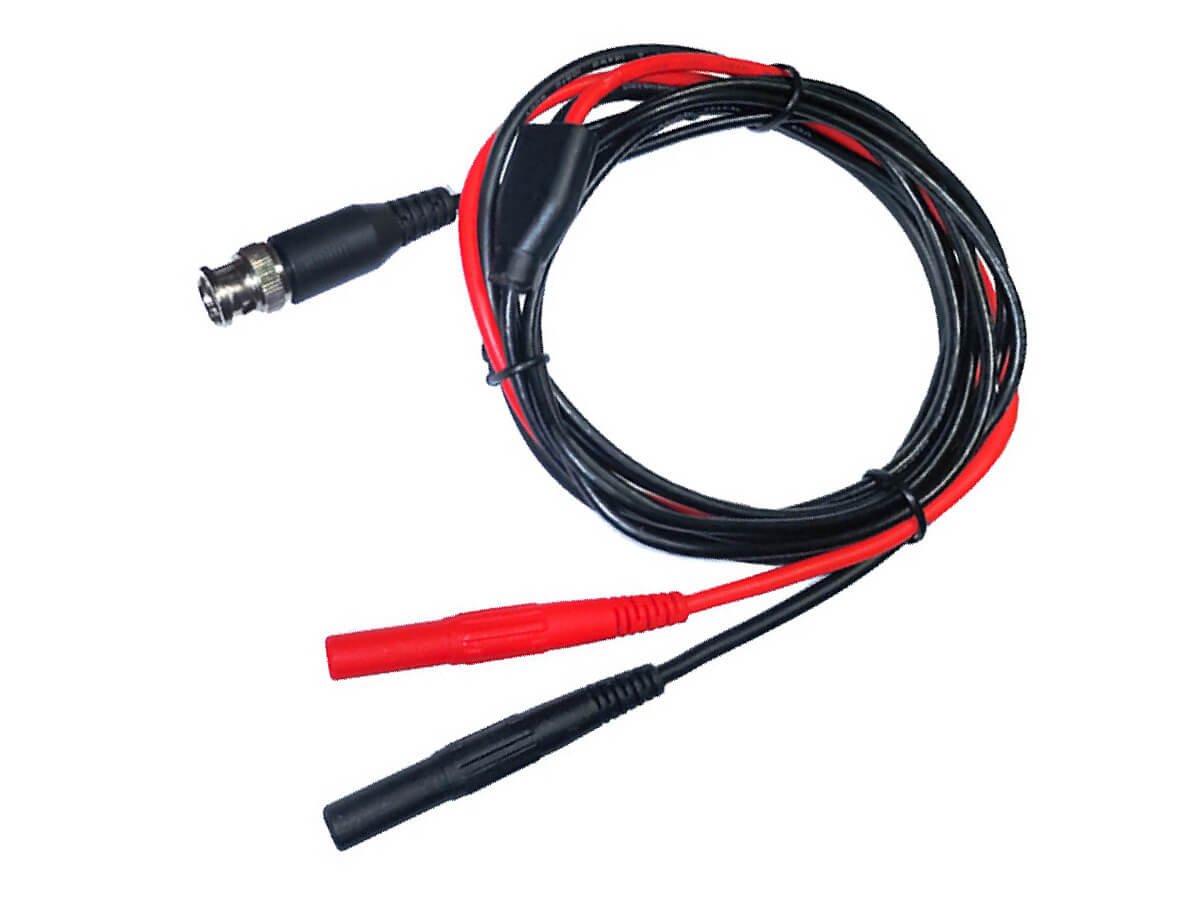

Oscilloscope probe (4 pieces are included to the kit)

The oscilloscope probe is used to transmit the measured signal from the vehicle wiring to the input of an automotive oscilloscope equipped with a BNC connector.
Probe_needle_300x225

Needle probe (4 pieces are included to the kit)

The needle probe allows you to connect an oscilloscope or measuring probe to the contacts of the vehicle's electrical equipment.
Probe_crocodile_300x225

Small crocodile clip (2 pieces are included to the kit)

Small «crocodile» clip is used for connection of the measuring adapter with the vehicle wiring (without damage to the wiring, through the open terminals).
DIS Cx 6 capacitive probes

DIS Cx 6 capacitive probes

DIS Cx6 is a set of capacitive probes for diagnosing DIS ignition systems. Designed for diagnostics of Distributorless Ignition Systems of 4/6 cylinder engines as well as ignition systems equipped with a distributor.
Synchro_300x225

Sync synchronization transducer

Sync synchronization transducer is used to synchronize to a cylinder by attaching to a plug wire
Cx_m_300x225

Cx-M universal capacitive probe

Cx-M universal capacitive probe is used get voltage waveforms from the secondary circuit of unshielded individual coils ignition systems, as well as from systems where the ignition coil is located inside the distributor.
Lx-M_probe_300x225

Lx-M universal inductive probe

Lx-M universal inductive probe is used to get voltage waveforms from the secondary circuit of shielded coils of individual ignition systems, as well as from DIS-ignition coils mounted directly above the spark plugs.
30

Px8 in cylinder pressure transducer

Px8 pressure transducer is designed to assess the engine mechanical condition using an oscilloscope. It allows you to display on the screen of an oscilloscope a waveform of the pressure in the cylinder of an engine in the range -0.95 … +6 Bar (-14 – 87 psi).
PxLonger_M14_300x225

PxLonger M14 deep well adapter

Px Longer M14 serves as an adapter for installing a Px35 pressure transducer in an engine cylinder with a deep spark plug well. The Px Longer M14 extension is designed to work with engines with a standard plug thread M14x1.25
Spark_gap_300x225

Spark Gap tester

Spark gap tester is used in place of the spark plug when performing in cylinder pressure transducer testing. Also for ignition system testing.
Dx_300x225

Dx vacuum transducer

The Dx transducer is designed to obtain the vacuum waveform in the intake manifold of a gasoline engine, low-pressure waveforms in the crankcase and waveforms from exhaust gas flow using an oscilloscope. Designed for vacuum measurement of gases in the range -0.95 … + 0.15 Bar (-14 to 2.2 psi)
Probe_prick_300x225

Insulation piercing probe (2 pieces are included to the kit)

Insulation piercing test clip is used for piercing wiring when performing tests. Causes minimal damage to the wiring.
PIN3_BNC_300x225

XLR-BNC connection cable (2 pieces are included to the kit)

The XLR-BNC cable is designed to connect to Px8, Px35, Dx, Laser, CTi-M, Piezo Amplifier transducers. Provides power to the transducer and signal transmission from the sensor to the oscilloscope with BNC connector
Hv_adapter_300x225

Adapter for high voltage extension

Adapter for high voltage extension cable is used during various engine tests. It serves as an adapter for connecting the high-voltage output of the dismantled ignition coil to its spark plug through an additional high-voltage wire.
