Glow plug Adapter 75mm M10x1
Glow plug Adapter 75mm M10x1
Glow plug Adapter 75mm M10x1 and compatible glow plugs
Glow plug Adapter 75mm M10x1 and compatible glow plugs

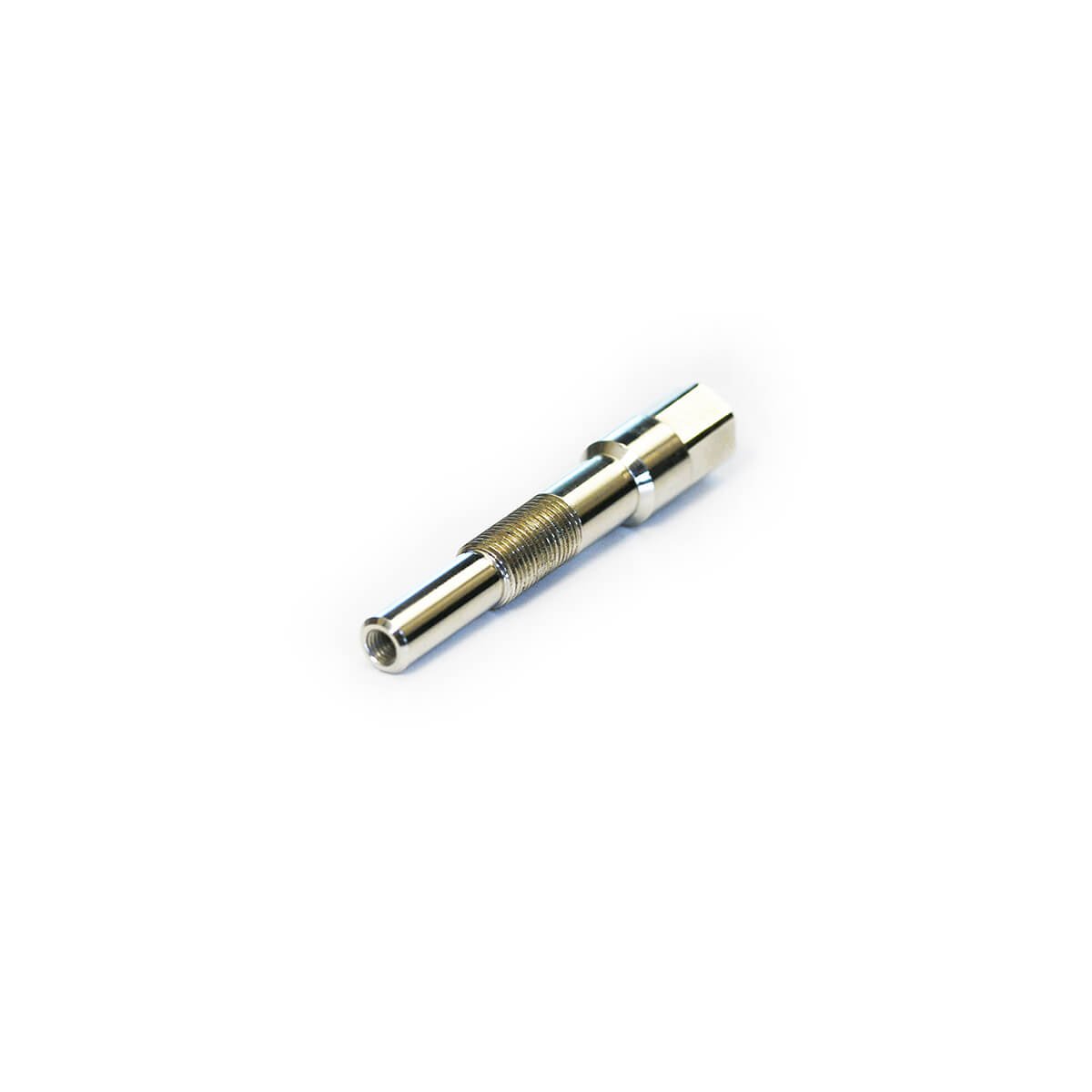

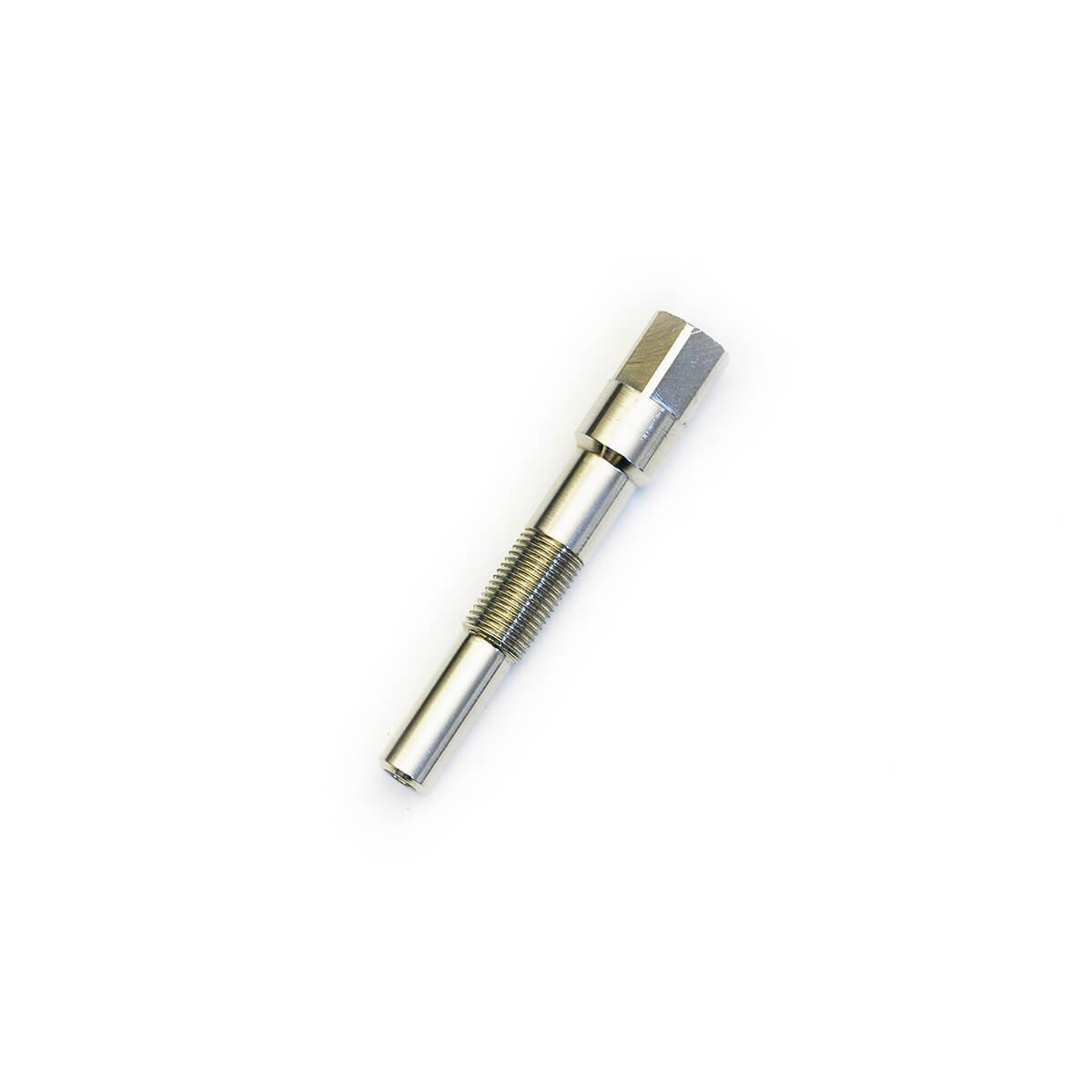

Glow plug Adapter 75mm – M10 x 1.0

Serves as an adapter for installing Psg200 diesel pressure transducer in the cylinder of engine.
Glow plug Adapter is designed for in-cylinder pressure testing on a wide range of modern diesel engines. It is primarily used to securely connect a PSG200 diesel pressure transducer to the cylinder through the glow plug port, bypassing the need to remove fuel injector.

25 $

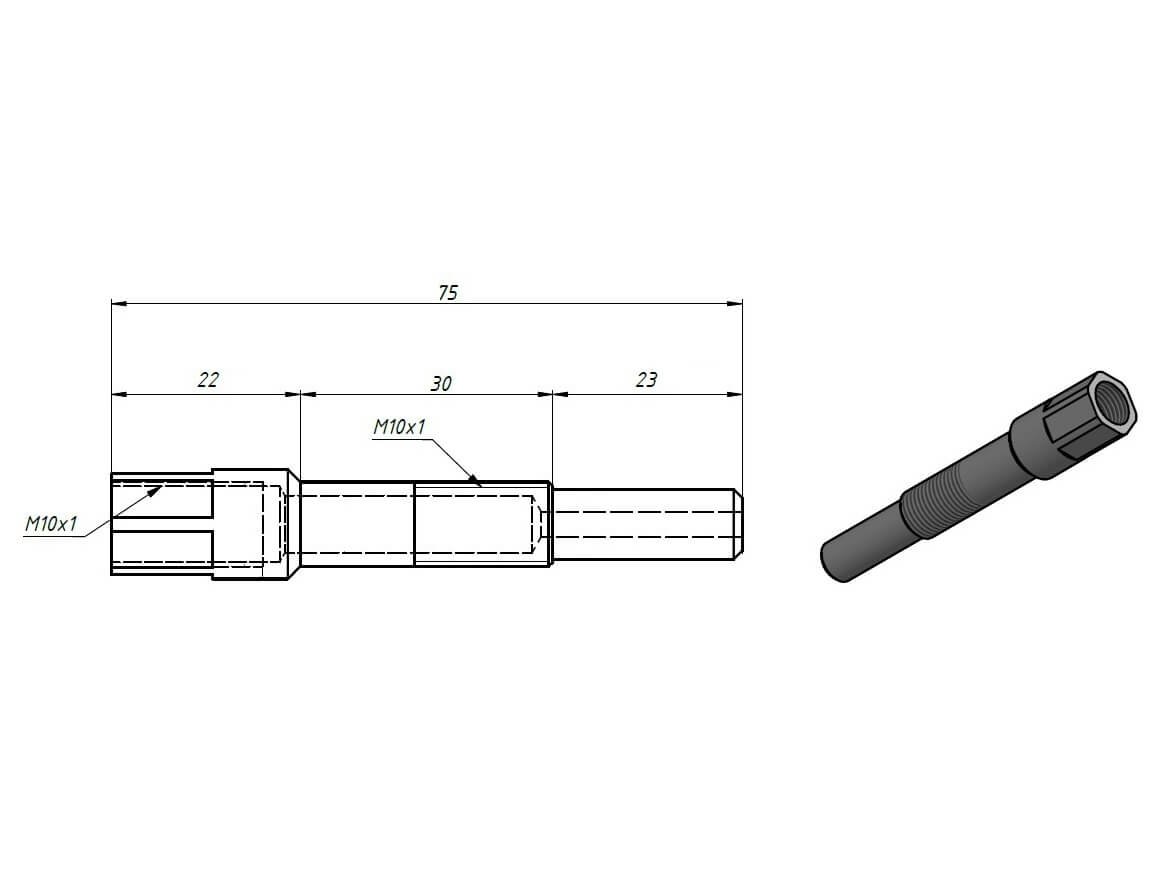

Drawing of Glow plug Adapter 75mm - M10 x 1.0
Glow plug adapter dimensions

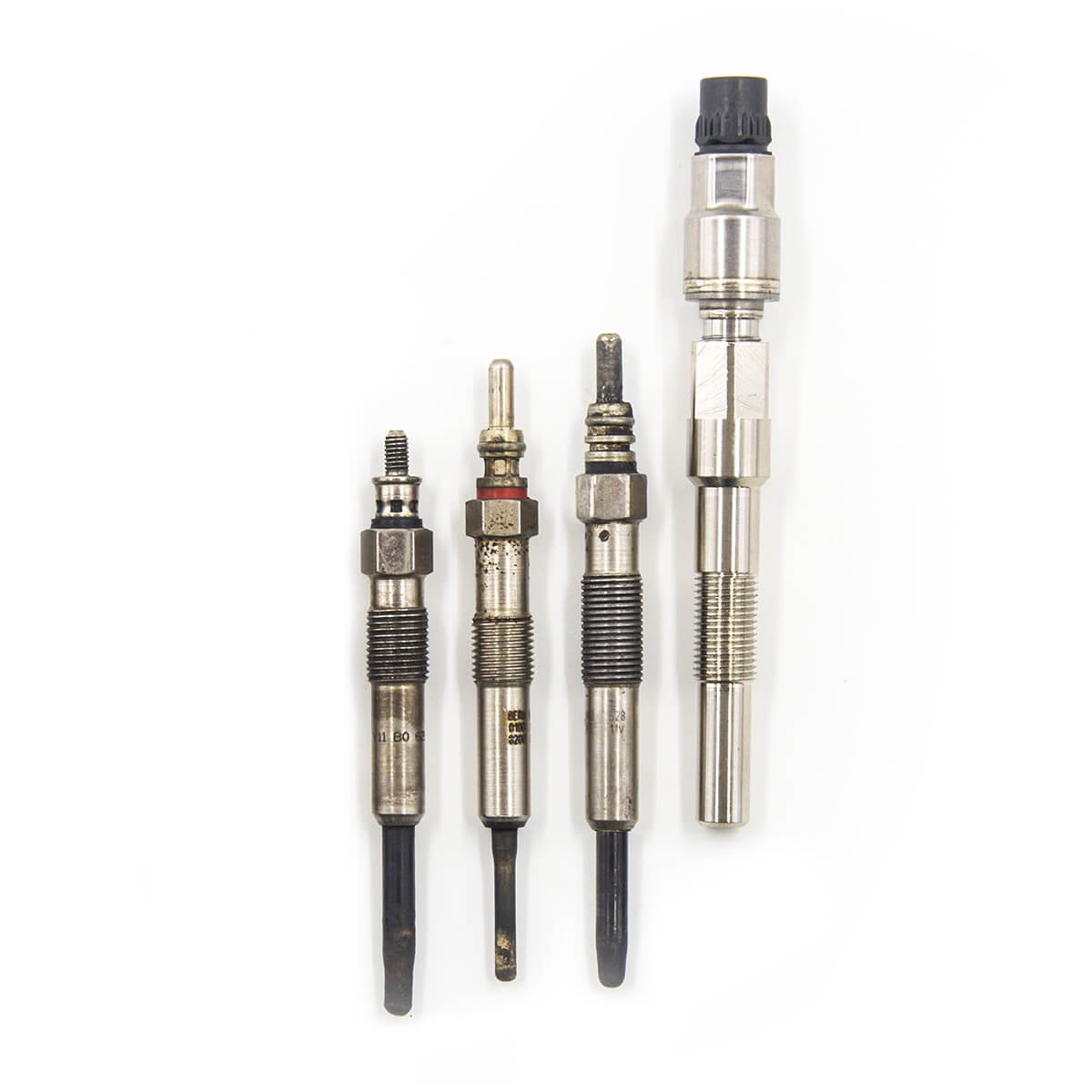

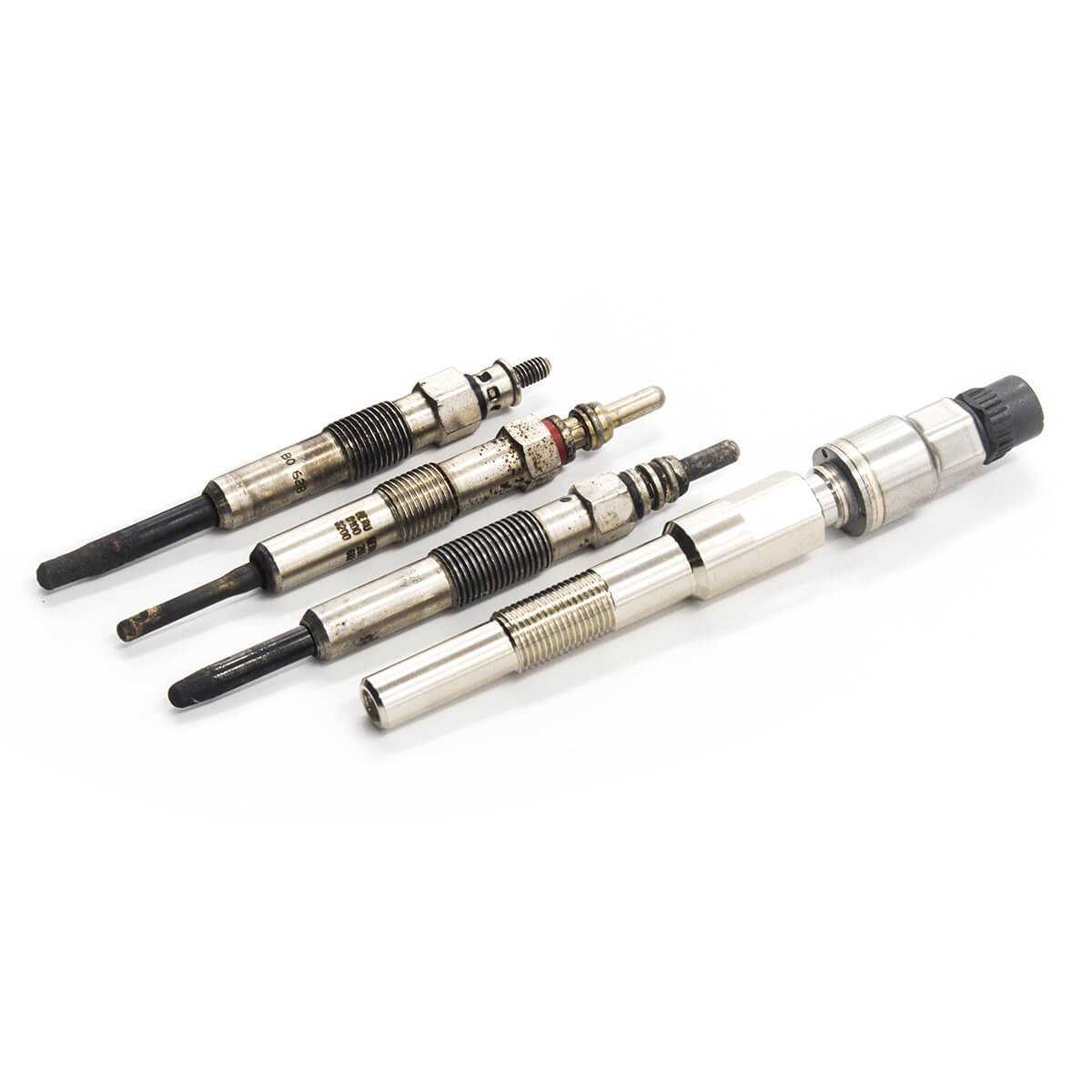

Glow plug Adapter 75mm M10x1 and compatible glow plugs

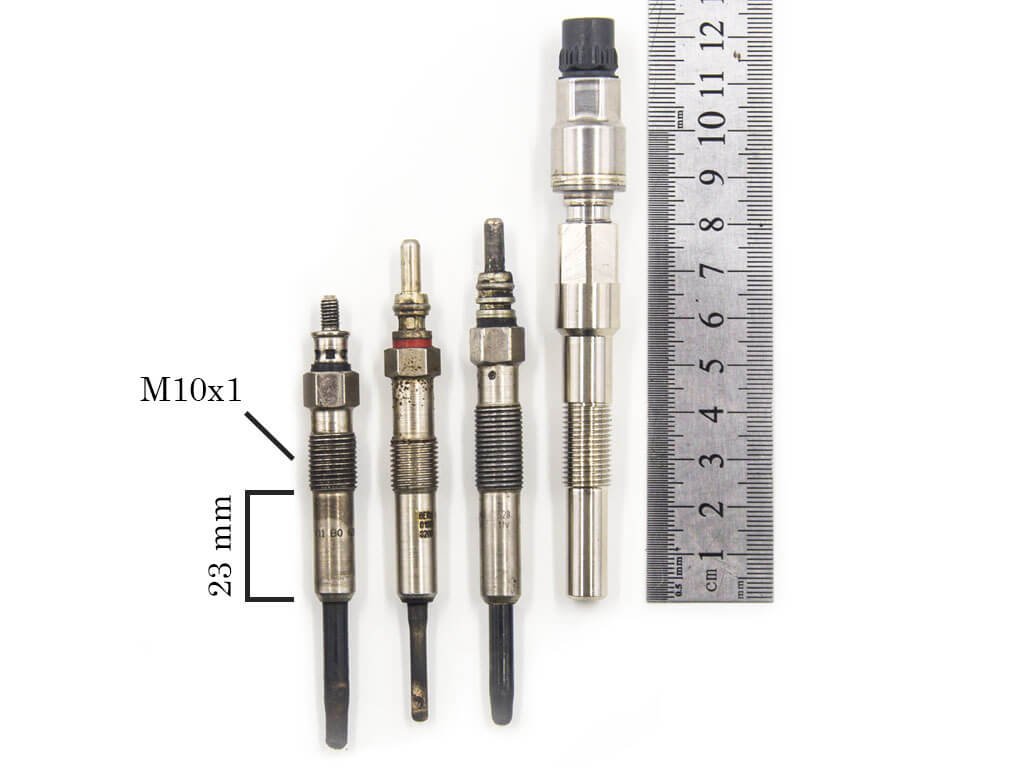

Thread size: M10 x 1mm, 75mm total length, thread to seal 23mm

Glow plug adapter is designed for in-cylinder pressure testing on a wide range of modern diesel engines. It is primarily used to securely connect a PSG200 diesel pressure transducer to the cylinder through the glow plug port, bypassing the need to remove fuel injector.

Fits diesel vehicles from Audi, BMW, Citroën, Dacia, Honda, Hyundai, Kia, Land Rover, Mercedes-Benz, MINI, Nissan, Opel/Vauxhall, Peugeot, Renault, Rover, SEAT, Škoda, Subaru, Suzuki, Toyota, Volkswagen and Volvo with M10 × 1.0 glow plug threads.
